Epoxy Resin for Porous Overlay Paving

MTB-7910 Epoxy Resin for Porous Overlay Paving

POROUS OVERLAY PAVING

MTB  porous/permeable which allows water to penetrate the surface and flow through to the ground below. With issues surrounding flooding, pollution and preservation orders on trees, a porous surface is becoming increasingly important in fact essential.

Because of the strength of our high grade resin our design process uses optimal amounts of resin creating a strong bond. This results in the particles being held firmly together at the points of contact only, leaving voids for water and air to permeate through.

In an effort to control the quality of our waterways and reduce surface run off and flooding, local councils are now restricting the footprint of impervious surfaces on plots of land. The size of a property, driveway and pathways can be affected by these new restrictions. By using MTB-7910  you can achieve all the low maintenance benefits of hard surfaced areas such as blocks, pavers and concrete, but with the properties of a soft landscaped lawn or loose gravel therefore meeting council requirements and having a positive effect on the environment.

ADVANTAGES OF MTB-7910 UV Stable Resin bound and resin bonded surfacing

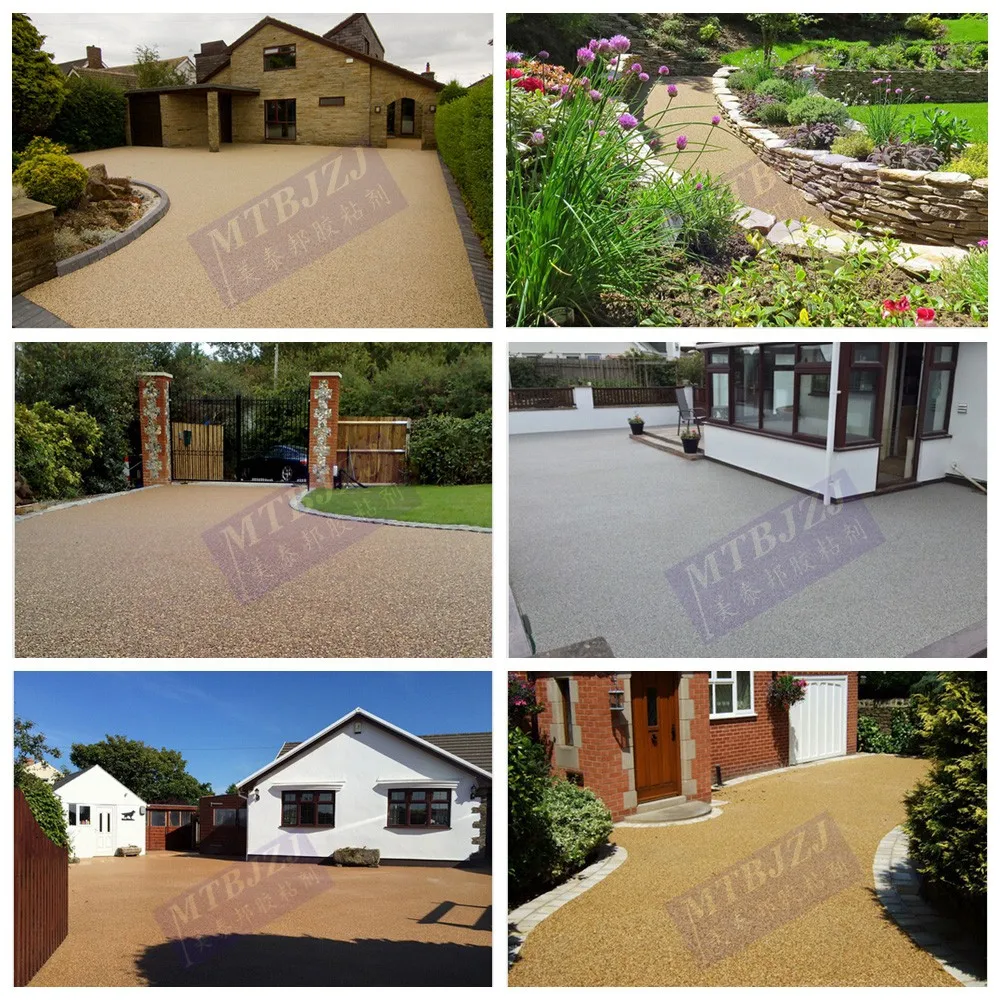

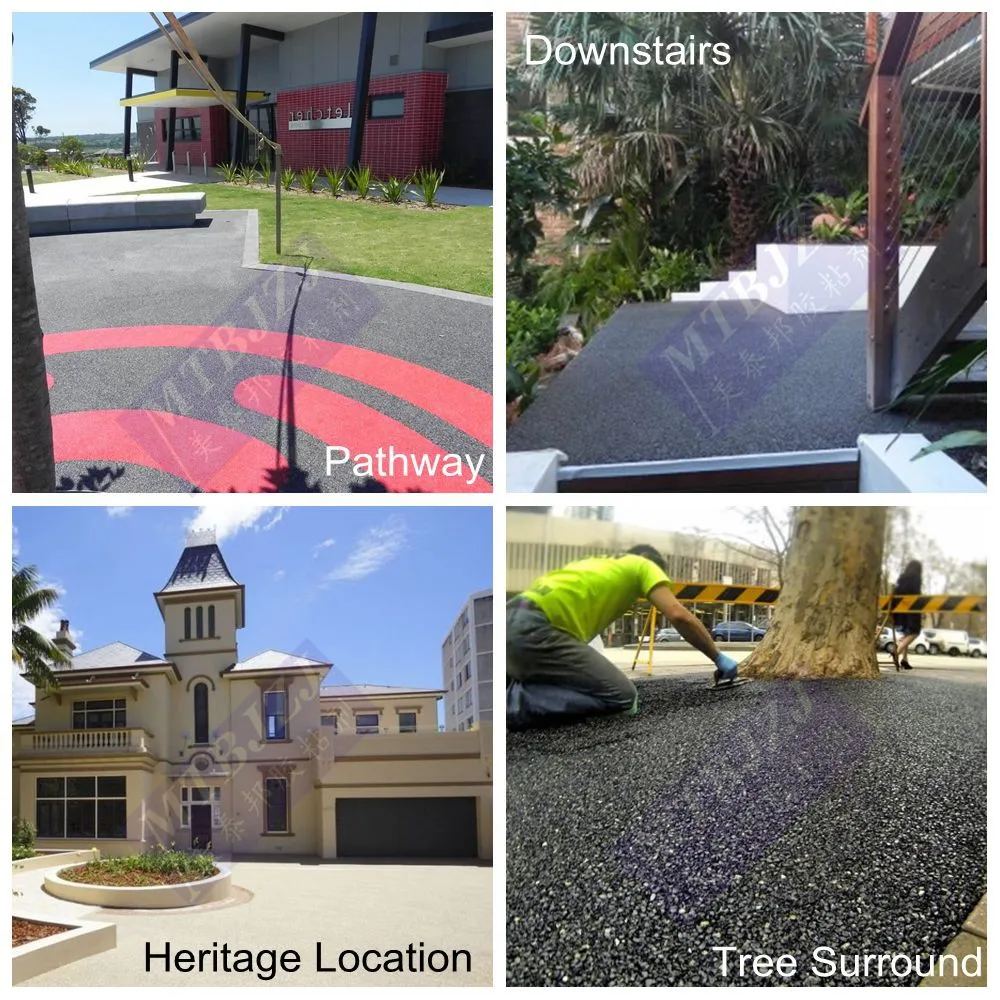

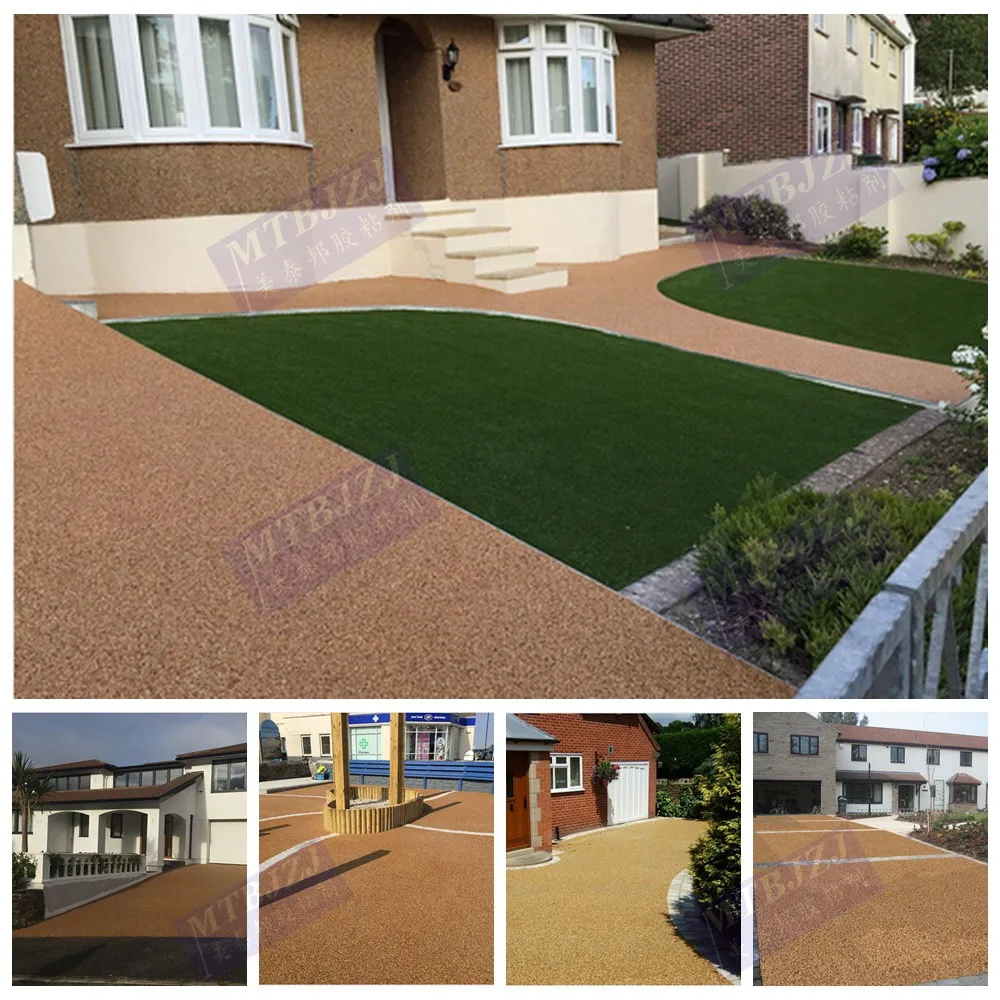

• Driveways compliment the house colour and stay puddle free. Customise lines for driveway basketball games and keep your feet cooler by choosing light colours.

• Extended driveways and carports, or other added storage spots that are normally eyesores, match the original driveway and compliment the house colour.

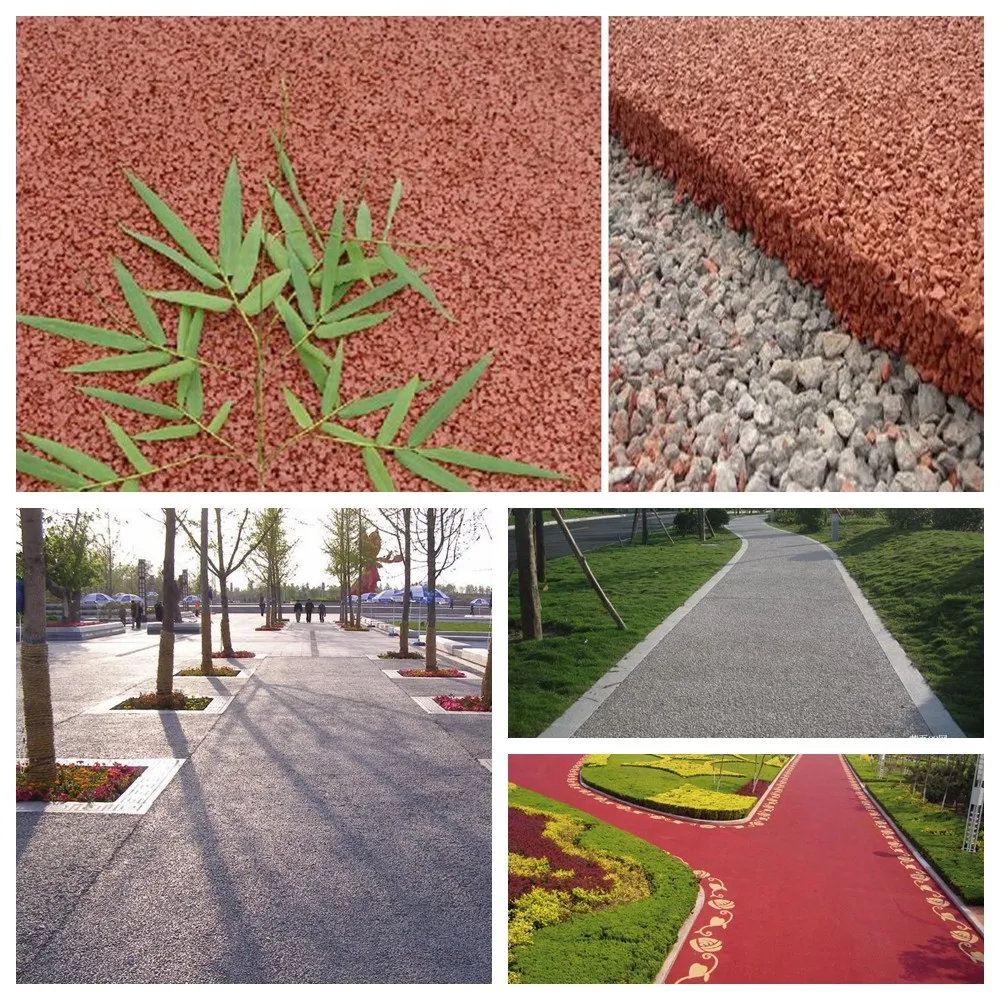

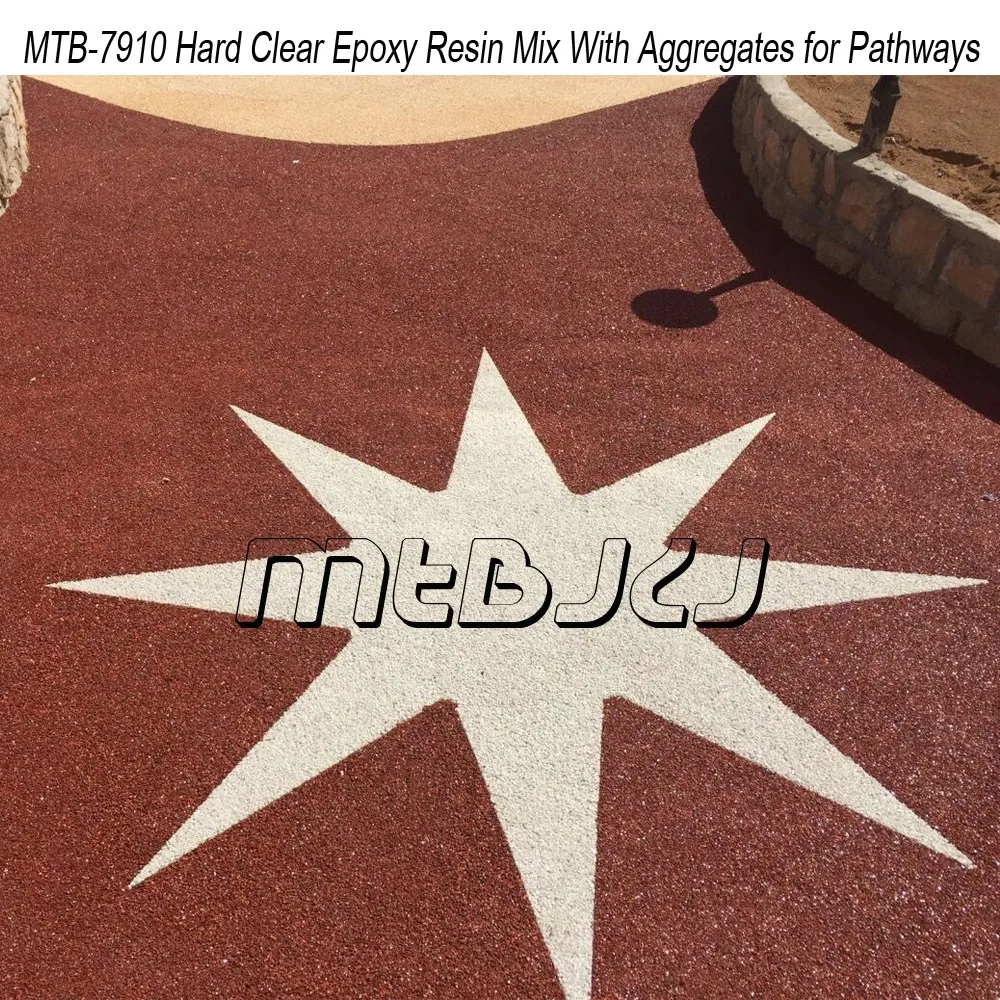

• Pathways see less puddling and are thus more slip resistant.

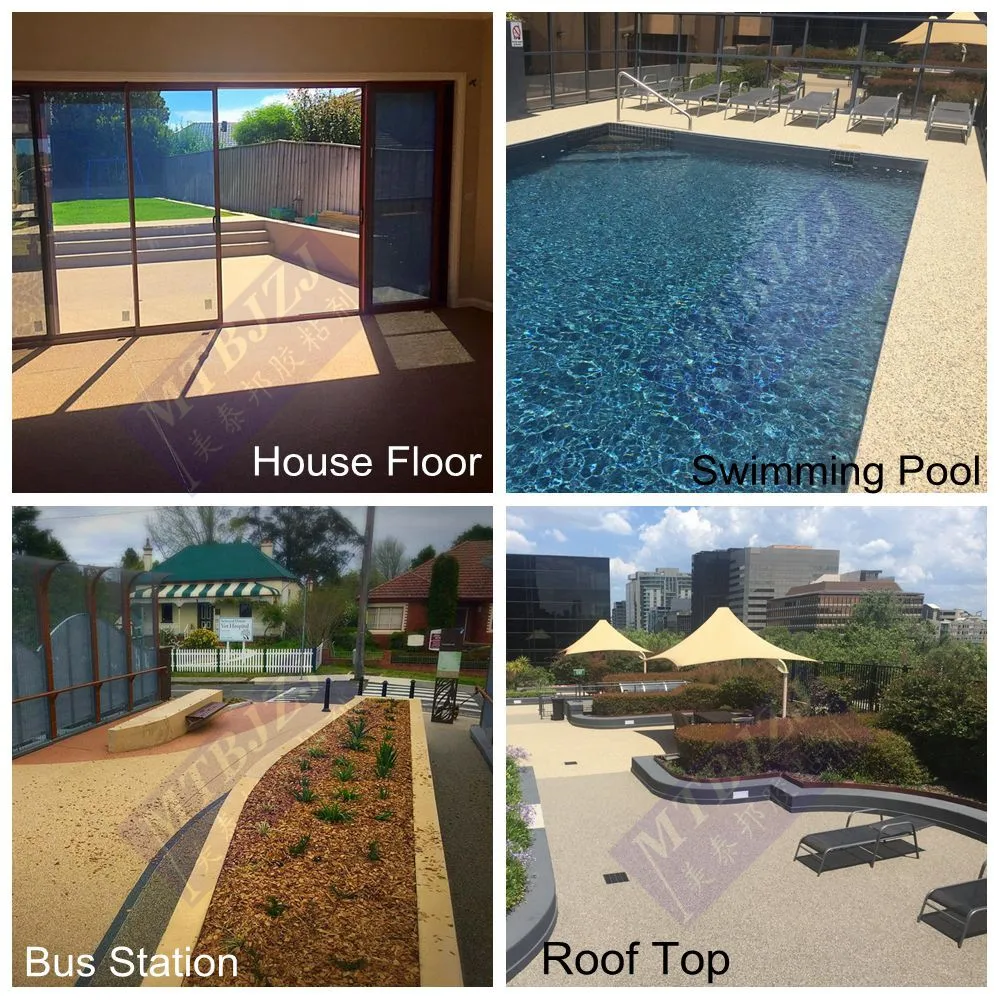

• Courtyards, or wide open entertaining places, keep cooler with lighter colours of stone, and the surface is free of puddles for entertaining after a rainstorm.

• Playgrounds keep cooler with light stone colors and become playful places with whimsical colour accents in bright shades of recycled glass that shine

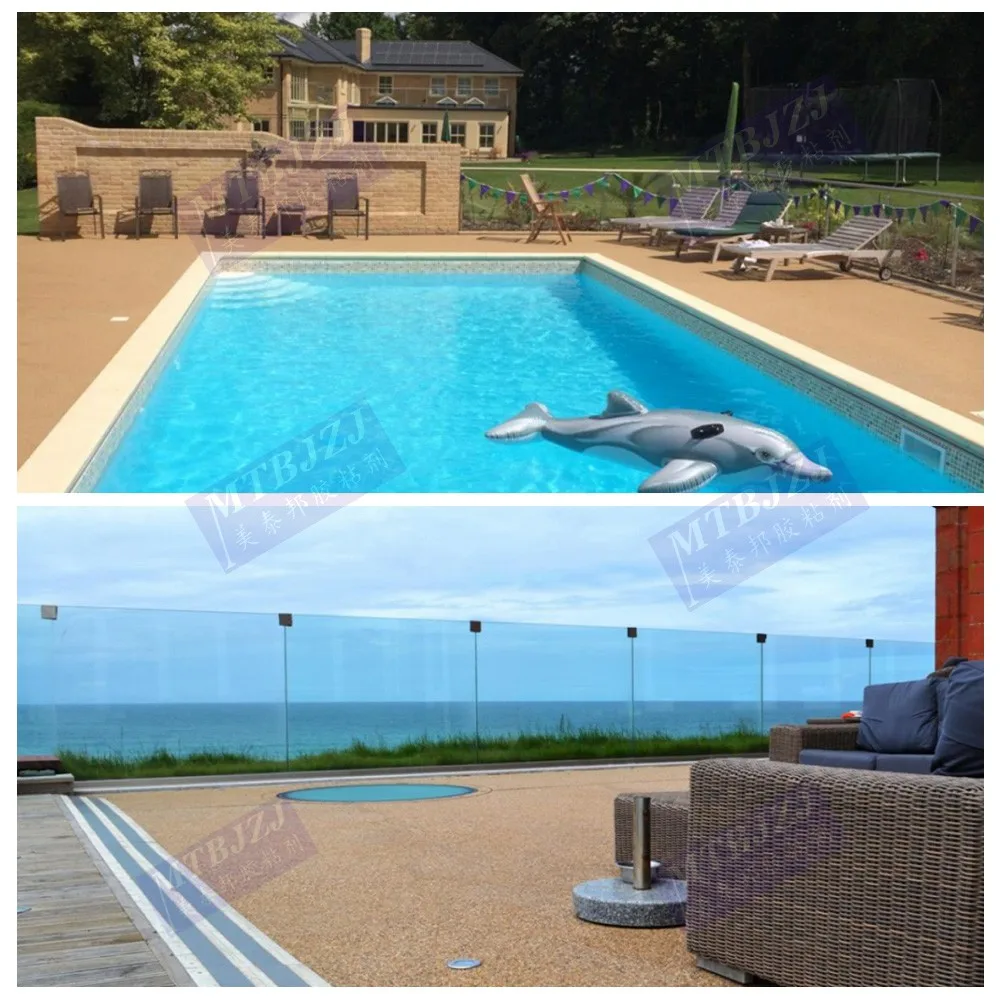

• Pool surrounds with light surfaces stay cooler, and colour accents creatively make pool time more fun. The slip-resistant sand finish keeps everyone safe, too.

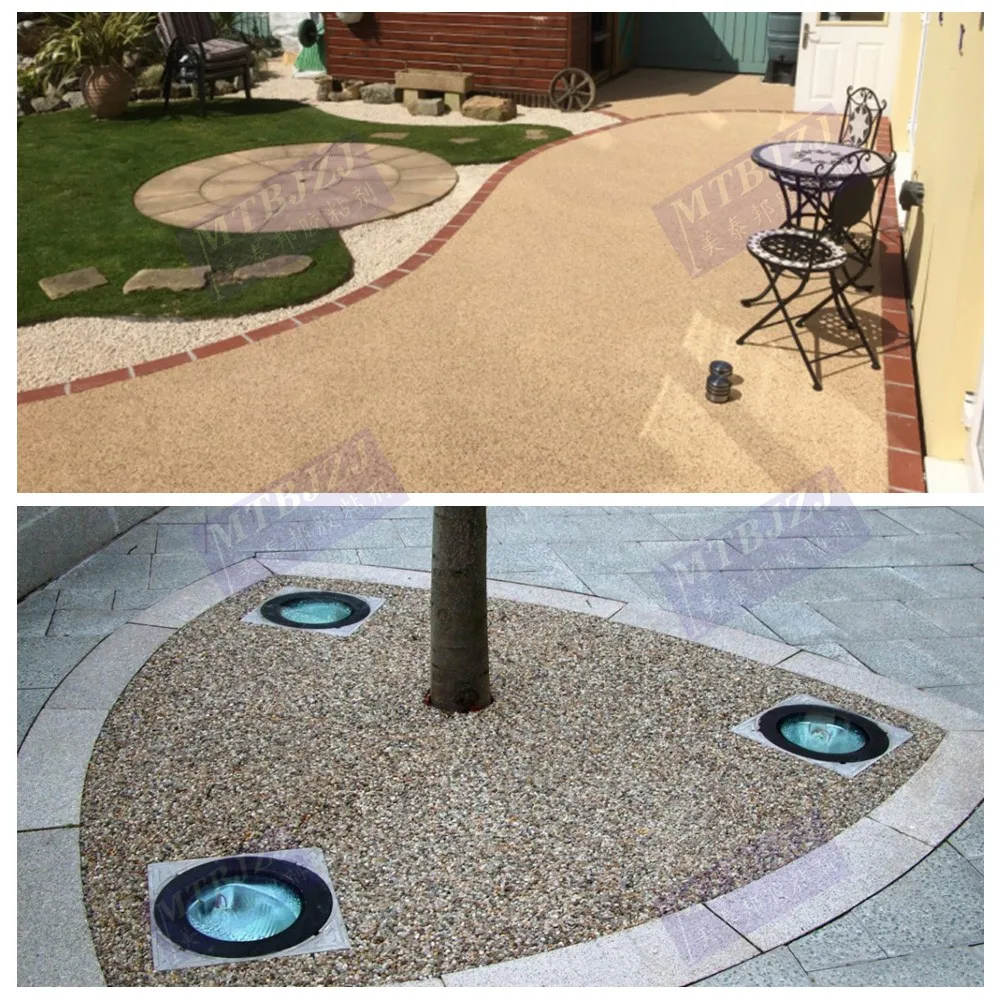

• Patios, large and small, are perfect for porous paving, and it is nice to have so many colour options to choose from to match the house or compliment the pool surround or the garden pathway system.

• Parking lots for cars see less puddles (if any) with porous paving. Customise and make permanent white lines and handicapped spots or employee of the month spots with white stone and recycled coloured glass. A company logo StoneSet into a parking lot makes quite the impression for your church, school, business, or organization.

• Disability and wheelchair access ramps match the parking lot or the front entry way's natural stone colour. With vibrantly coloured recycled glass, add welcoming accents. The sand coated StoneSet ramp will remain slip-resistant and require far less maintenance than a concrete ramp.

• Tree and garden surrounds made of porous paving provide puddle-free cool surfaces and shady areas outside around a building and improve the environment around it. Porous paving prevent erosion and the colour options makes and garden landscape stand out as special.

Coverage Data

MTBJZJ Resin Bound Surfacing Resin                                           1.5kgs (Epoxy Resin (A)+Hardener(B))

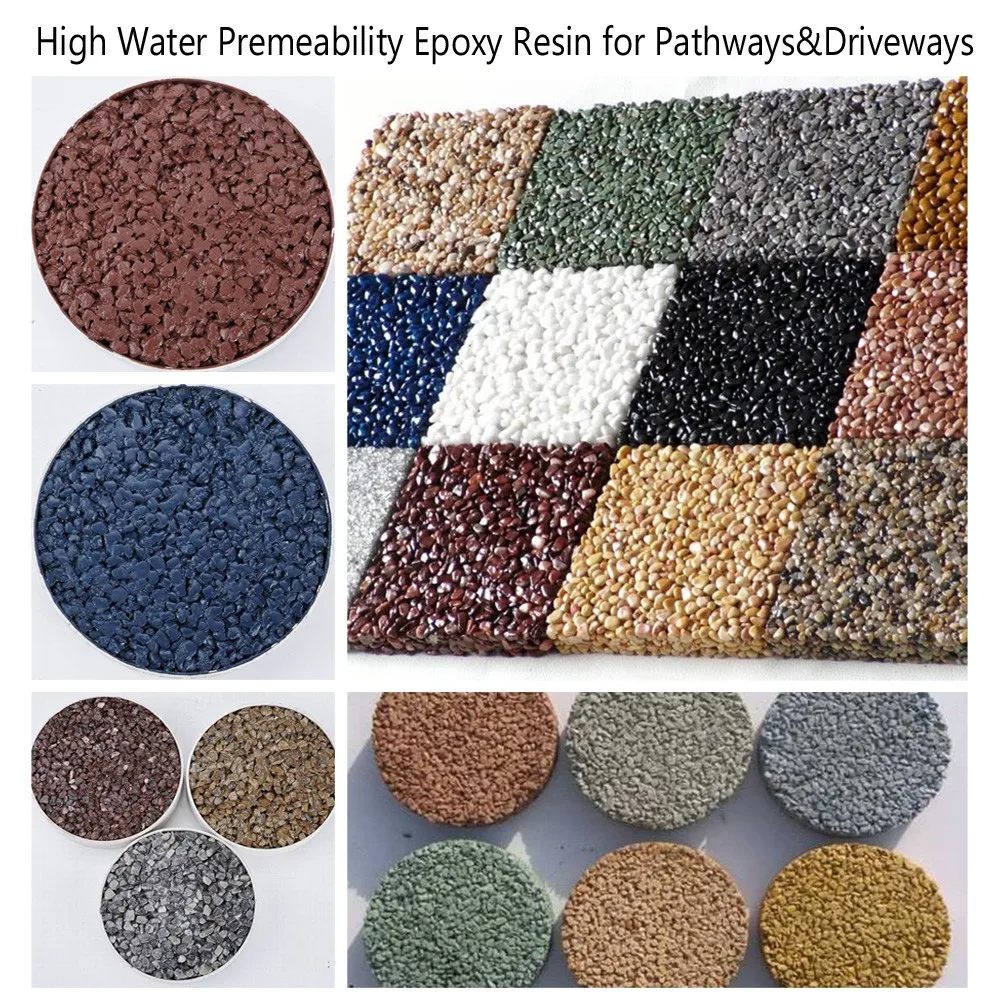

MTBJZJResin Bound Surfacing Aggregate(4~6mm)              100kgs
Coverage @ 10mm                                                                                  6.5m² (approx)
Coverage @ 15mm                                                                                 4.675m² (approx)
Coverage @ 18mm                                                                                 3.89m² (approx)
Coverage @ 20mm                                                                                 3.5m² (approx)

Physical Properties of MTB-7910 UV Stable Resin bound and resin bonded surfacing @ 20-25°C

Working Time                                                  40—55 minutes
Lay Before Rain                                             4—4½ hours
Foot traffic                                                      after  1 3—14½ hours
Light vehicle traffic                                     after  1½—2 days

Occasional heavy vehicle traffic          after 7 days

Notes:Site conditions will affect the times quoted. All data is provided as a guide only.

PACKAGE

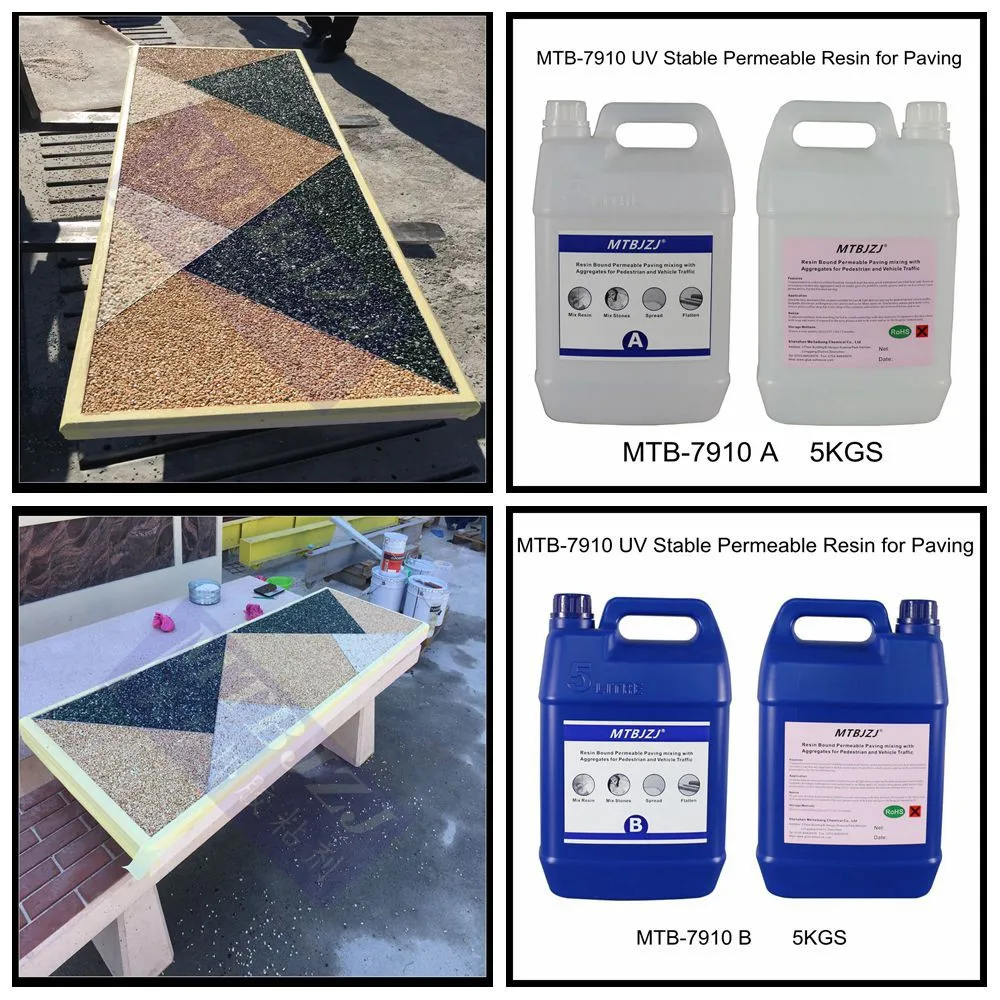

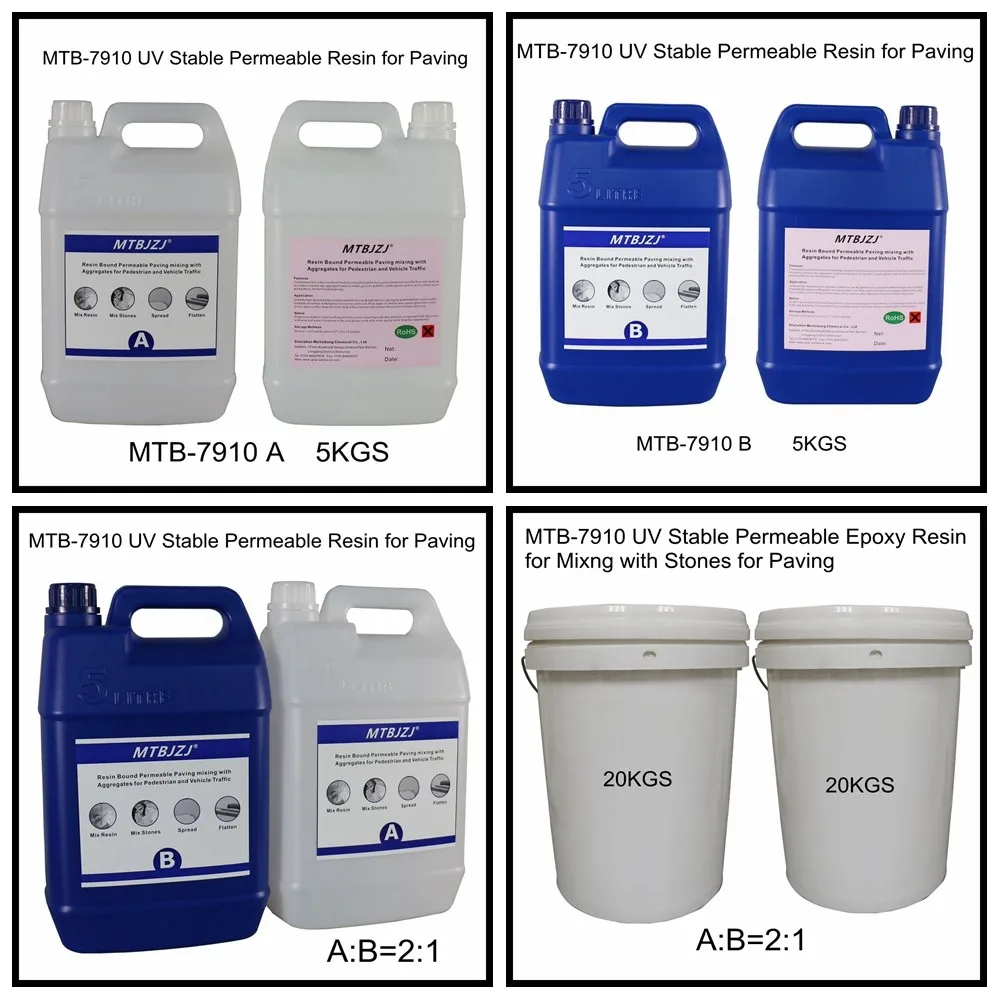

---5KGS/barrel ,15kgs/set (10kgs of epoxy resin in white bottle and 5kgs of hardener in blue bottle )

---20KGS/barrel,60kgs/set(40kgs of epoxy resin and 20kgs of hardener)

Delivery

In 1-3 days to deliver to you when you confirm the order.
